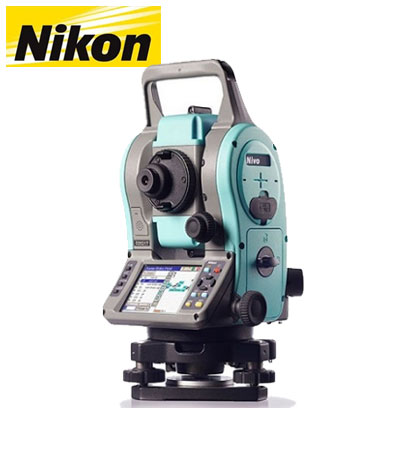

Total Station Nikon Nivo 1C Reflectorless


  • BrandsNikon
  • Product Code: Total Station
  • Availability: 3

  • Rp0



CV.INDOTELECOM | SUPPLIER ALAT SURVEY TOTAL STATION NIKON, TOPCON, SOKKIA, SOUTH BERGARANSI RESMI.

Nikon Nivo 1.C Total Station Reflectorless dengan akurasi 1 detik didukung dengan optik kejelasan Nikon yang legendaris untuk gambar yang lebih jelas dalam kondisi cahaya terang dan rendah, membuat pengukuran lapangan menjadi mudah dan mengurangi tekanan mata. Ini memiliki perangkat lunak pengumpulan data bawaan untuk menghitung pengukuran tepat di tempat dan konektivitas Bluetooth untuk menghubungkan ke pengendali medan. Kompak dan ringan, instrumen optik ini mudah dibawa dalam jarak jauh dan sangat tahan lama untuk tahan terhadap kondisi cuaca yang buruk.

Ukuran EDM yang cepat dan panjang dalam mode prisma dan reflectorless. The Nivo 1.C justru mengukur benda hingga 1.640 kaki jauhnya tanpa memerlukan prisma dan sekitar 9.843 kaki menggunakan prisma tunggal. Lampu panduan koaksial merah sangat berguna untuk bantuan di luar tujuan dan pengintaian.

Instrumen lapangan ini memiliki sensor kemiringan dan kompensator dual-axis untuk penyamarataan sempurna dan dilengkapi standar dengan penurunan optik tradisional yang dapat ditingkatkan menjadi laser anjlok dengan memilih opsi di sudut kanan atas halaman.

Features Total Station Nikon Nivo 1C Reflectorless

  • 1-second accuracy
  • 128 MB internal memory
  • 1,640 foot range
  • Bluetooth
  • Optical plummet
  • Coaxial red laser pointer
  • Reflectorless
  • Dual-axis compensation
  • High quality Nikon optics
  • Onboard Survey Pro software
  • Built-in Windows CE operating system
  • USB high-speed data transfer port
  • Up to 28 hours hot swappable Li-Ion batteries
  • Water resistant and dustproof to IP-56
  • Dual color touchscreen LCD display
  • Easy-to-use keypad
  • Compact, rugged and lightweight

Specifications Total Station Nikon Nivo 1C Reflectorless

General

Weight

8.6 lbs (3.9 kg)

Dimensions

5.8 in x 5.7 in x 12.0 in (14.7 cm x 14.4 cm x 30.4)

Warranty

2-year

Protection Class

IP56 (dustproof and protection against strong water jets)

Internal Memory

128 MB

Software

Spectra Survey Pro

Tribrach

Detachable

Guide Light

Red LED



Angle Measurement

Measuring Method/Reading System

Absolute encoder

Minimum Reading

0.5-second

Accuracy

1-second

Diameter of Circle

2.4 in (6 cm)



Distance Measurement

Unit of Measure (distance display)

m/ft

EDM Accuracy (Precision)

±(2mm + 2ppm x D) for prism; ±(3mm + 2ppm x D) for no prism

Minimum Reading

500 m (1,640 ft)



Tilt Sensor/Compensator

Range

±3.5

Type

Dual-axis

Method

Liquid-electric detection



Battery/Power

Power Source

Two rechargeable Li-Ion batteries

Battery Life

28 hours

Battery Life Alert

yes

Voltage

3.8 V DC



Optical Plummet


Erect

Magnification

Field of View

5 degrees

Focus Range

0.5 m (1.6 ft) to infinity



Level

Circular Bubble Vial

10 minutes per division/(2 mm)

Electronic Level

Displayed on the LCD



Telescope

Length of Tube

125 mm (4.9 in)


Erect

Diameter of Objective Lens (Aperture)

45 mm EDM (1.8 in)

Magnification

30x

Field of View

1 degree 20 arcmin

Resolving Power

3 arcsec

Minimum Focus Distance

1.5 m (4.9 ft)

Reflectorless

yes



Display and Keypad

Type

QVGA ,16 bit color TFT LCD

Sides

Dual

Keys

Full numeric keyboard

Touchscreen

yes

Backlight

yes

Pixels

Face 1: 320 x 240 pixels; Face 2: 128 x 64 pixels



Temperature

Operating

-4°F~122°F (-20°C~50°C)

Storage

-13°F~140°F (-25°C~60°C)



Applications

Surveying and Construction

yes

Mapping and GIS (geographic information systems)

yes

Utilities

yes

Environment Studies

yes

Geomarking

yes

Archaeology

yes

Accident Reconstruction

yes



Measurement Range (under fair weather conditions)

Single Prism

3,000 m (9,843 ft)

No Prism

500 m (1,640 ft)

Reflector Sheet

270 m (886 ft)



Functions

Coordinate Measurement Point

yes

Angle and Distance Stake Out

yes

Stake Out Line

yes

Offsets

yes

Missing Line

yes

Remote Elevation

yes

Resection

yes

Area Calculation

yes



Laser Plummet

Class

2

Wavelength

635 nm



Interface

Bluetooth

Class 2

USB

Type A and mini B

Pin Port

RS-232C

Operating System

Windows CE


What's in the Box
  • Nikon Nivo 1.C 1 second reflectorless total station with optical plummet HNA30130
  • USB Download Cable
  • Tribrach
  • Plastic carrying case
  • Rechargeable Li-ion batteries (2)
  • Universal charger
  • Power Cord and adapters
  • User Manual



"Beli Total Station Nikon Nivo 1C Reflectorless dengan harga ekonomis dan cari produk lainnya dari kategori Total Station dari Merk Nikon. Gratis biaya pengiriman untuk wilayah Jakarta, Bogor, Depok, Tanggerang & Bekasi (JABODETABEK). Dan dapat dikirim ke seluruh Indonesia. Dapatkan hanya di indotelecom.net, belanja online mudah dan aman."
