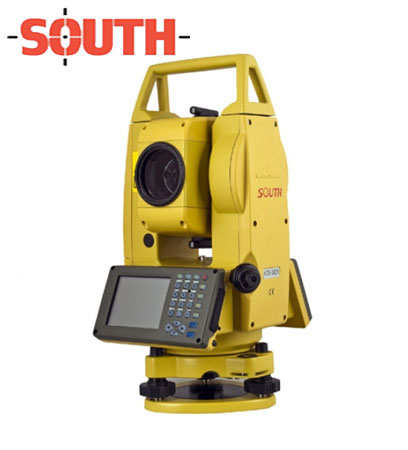

Total Station South NTS 365R (5 Second-Accuracy)
- BrandsSouth
- Product Code: Total Station
- Availability: 1
-
Rp0
CV.INDOTELECOM | SUPPLIER ALAT SURVEY TOTAL STATION SOUTH NIKON, TOPCON, SOKKIA, SPECTRA BERGARANSI RESMI.
Total Station South NTS-365R tertanam dengan berbagai program survei yang beredar, ditambah dengan fungsi penyimpanan data dan pengaturan parameter, yang dapat diterapkan secara luas dalam berbagai jenis survei professtional dan konstruksi. Reflektor kurang 300m Fungsi Sangat Bagus SD card dan USB Interface Six-line Large LCD Road-Design Program.
Total Station South NTS 365R menawarkan banyak keuntungan untuk hampir semua jenis survei. seperti: topografi, Hidrografi, kadaster, proyek dan survei konstruksi.
Products Features :
- Absolute Encoding Disk.
- Six-line large LCD.
- Various Surveying Programs.
- The Road Design Measurement
- Dual Axis Compensation.
- SD card function and USB interface.
- Superior Water and Dust Proof.
- Water and Dust Proof IP66.
Specifications Total Station South NTS 365R
General | |
Weight | 11 lbs (5 kg) |
Dimensions | 6.6 in x 6.8 in x 13.1 in (16.8 cm x 17.3 cm x 35.5 cm) |
Warranty | 1-year |
Protection Class | IP54 (protected against dust and water splashes) |
Tripod Thread | 5/8 x 11 in |
Internal Memory | 17,000 points |
Software | Nikon Survey |
Tribrach | Fixed |
| |
Angle Measurement | |
Measuring Method/Reading System | Incremental encoder |
Detection Method | Photoelectric |
Minimum Reading | 1-second/5-second/10-second |
Accuracy | 5-second |
Diameter of Circle | 3.46 in (88 mm) |
| |
Distance Measurement | |
Unit of Measure (distance display) | m/ft |
EDM Accuracy (Precision) | ±(2+2 ppm × D) mm |
Minimum Reading | 200 m (656 ft) |
| |
Tilt Sensor/Compensator | |
Range | ± 3 |
Type | Single-axis |
Method | Liquid-electric detection |
Setting Accuracy | 1 arcsec |
| |
Battery/Power | |
Power Source | Two Li-ion rechargeable batteries |
Battery Life | 22 hours |
Battery Life Alert | yes |
Voltage | 3.8 V DC |
| |
Optical Plummet | |
Image | Erect |
Magnification | 3x |
Field of View | 5 degrees |
Focus Range | 1.6 ft (0.5 m) to infinity |
| |
Level | |
Plate/Tubular Bubble Vial | 30 seconds per division/(2 mm) |
Circular Bubble Vial | 10 minutes per division/(2 mm) |
| |
Telescope | |
Length of Tube | 4.9 in (125 mm) |
Image | Erect |
Diameter of Objective Lens (Aperture) | 1.77 in.(45 mm) |
Magnification | 30x |
Field of View | 1 degree 20 arcmin |
Resolving Power | 3 arcsec |
Minimum Focus Distance | 4.9 ft (1.5m) |
| |
Display and Keypad | |
Type | Black and White LCD |
Sides | Dual |
Keys | Full numeric |
Backlight | yes |
Pixels | 128 × 64 pixels |
| |
Temperature | |
Operating | –4 °F to +122 °F (–20 °C to +50 °C ) |
| |
Applications | |
Surveying and Construction | yes |
Mapping and GIS (geographic information systems) | yes |
Utilities | yes |
Environment Studies | yes |
Geomarking | yes |
Archaeology | yes |
Accident Reconstruction | yes |
| |
Measurement Range (under fair weather conditions) | |
Single Prism | 3,000 m (9,840 ft) |
No Prism | 400 m (1,312 ft) |
Reflector Sheet | 200 m (787 ft) |
| |
Functions | |
Coordinate Measurement Point | yes |
Angle and Distance Stake Out | yes |
Stake Out Line | yes |
Offsets | yes |
Missing Line | yes |
Remote Elevation | yes |
Resection | yes |
Area Calculation | yes |
| |
Laser Pointer | |
Class | 2; Coaxial red light |
| |
Interface | |
Pin Port | RS-232C |
