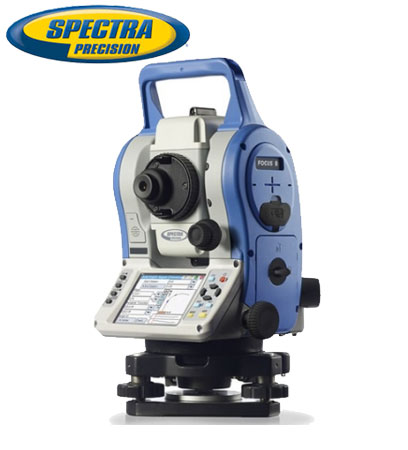

Total Station Spectra Precision Focus 8-5"Accuracy
- BrandsSpectra
- Product Code: Total Station
- Availability: 5
-
Rp0
CV.INDOTELECOM | SUPPLIER ALAT SURVEY TOTAL STATION SPECTRA, SOUTH NIKON, TOPCON, SOKKIA BERGARANSI RESMI.
Total Station Spectra Precision FOCUS 8 Reflectorless dengan akurasi 5 detik menggabungkan optik kejelasan dan perangkat lunak lapangan Survey Pro untuk merekam pengukuran jarak dan sudut yang tepat. Alat survei ini dilengkapi fitur Bluetooth untuk menghubungkan ke kolektor data dan layar touchscreen warna, meningkatkan alur kerja data melalui akses menu dan mode perangkat lunak. Ringan dan tahan lama, FOCUS 8 sangat portabel dan bisa beroperasi dalam kondisi cuaca yang keras.
Features Spectra Precision Focus 8 5-Second Reflectorless
- 5-second accuracy
- 128 MB internal memory
- 1,640 foot range
- Bluetooth
- Optical plummet
- Coaxial red laser pointer
- Reflectorless
- Dual-axis compensation
- Onboard Survey Pro software
- Built-in Windows CE operating system
- USB high-speed data transfer port
- Up to 20 hours operating time with hot swappable batteries
- Water resistant and dustproof to IP-66
- Dual color touchscreen LCD display
- Easy-to-use keypad
- Compact, rugged and lightweight
Specifications Spectra Precision Focus 8 5-Second Reflectorless
General | |
Weight | 8.4 lbs (3.8 kg) |
Dimensions | 5.8 in x 5.7 in x 12.0 in (14.7 cm x 14.4 cm x 30.4) |
Warranty | 2-year |
Protection Class | IP66 (dustproof and protection against strong water jets) |
Internal Memory | 128 MB |
Software | Spectra Survey Pro |
Tribrach | Detachable |
Guide Light | Red LED |
| |
Angle Measurement | |
Measuring Method/Reading System | Absolute encoder |
Minimum Reading | 1-second |
Accuracy | 5-second |
Diameter of Circle | 2.4 in (6 cm) |
| |
Distance Measurement | |
Unit of Measure (distance display) | m/ft |
EDM Accuracy (Precision) | ±(2mm + 2ppm x D) for prism; ±(3mm + 2ppm x D) for no prism |
Minimum Reading | 500 m (1,640 ft) |
| |
Tilt Sensor/Compensator | |
Range | ±3.5 |
Type | Dual-axis |
Method | Liquid-electric detection |
| |
Battery/Power | |
Power Source | Two rechargeable Li-Ion batteries |
Battery Life | 20 hours |
Battery Life Alert | yes |
Voltage | 3.8 V DC |
| |
Optical Plummet | |
Image | Erect |
Magnification | 3× |
Field of View | 5 degrees |
Focus Range | 0.5 m (1.6 ft) to infinity |
| |
Level | |
Circular Bubble Vial | 10 minutes per division/(2 mm) |
Electronic Level | Displayed on the LCD |
| |
Telescope | |
Length of Tube | 125 mm (4.9 in) |
Image | Erect |
Diameter of Objective Lens (Aperture) | 50 mm EDM (2.0 in) |
Magnification | 30x |
Field of View | 1 degree 20 arcmin |
Resolving Power | 3 arcsec |
Minimum Focus Distance | 1.5 m (4.9 ft) |
Reflectorless | yes |
| |
Display and Keypad | |
Type | QVGA ,16 bit color TFT LCD |
Sides | Dual |
Keys | Full numeric keyboard |
Touchscreen | yes |
Backlight | yes |
Pixels | Face 1: 320 x 240 pixels; Face 2: 128 x 64 pixels |
| |
Temperature | |
Operating | -4°F~122°F (-20°C~50°C) |
Storage | -13°F~140°F (-25°C~60°C) |
| |
Applications | |
Surveying and Construction | yes |
Mapping and GIS (geographic information systems) | yes |
Utilities | yes |
Environment Studies | yes |
Geomarking | yes |
Archaeology | yes |
Accident Reconstruction | yes |
| |
Measurement Range (under fair weather conditions) | |
Single Prism | 5,000 m (16,404 ft) |
No Prism | 500 m (1,640 ft) |
Reflector Sheet | 300 m (984 ft) |
| |
Functions | |
Coordinate Measurement Point | yes |
Angle and Distance Stake Out | yes |
Stake Out Line | yes |
Offsets | yes |
Missing Line | yes |
Remote Elevation | yes |
Resection | yes |
Area Calculation | yes |
| |
Laser Plummet | |
Class | 2 |
Wavelength | 635 nm |
| |
Interface | |
Bluetooth | Class 2 |
USB | Type A and mini B |
Pin Port | RS-232C |
Operating System | Windows CE |
