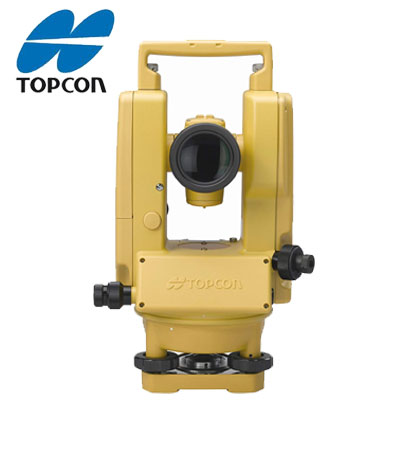

Digital Theodolite Topcon DT-205 5"Accuracy
- BrandsTopcon
- Product Code: Digital Theodolite
- Availability: 5
-
Rp0
CV.INDOTELECOM | SUPPLIER DIGITAL THEODOLITE TOPCON, NIKON, SOKKIA, SOUTH BERGARANSI RESMI.
Digital Theodolite Topcon DT-205 dirancang untuk konstruksi umum, tata letak dan tata letak aplikasi, Digital Theodolite Topcon DT-205 menawarkan akurasi 5-detik untuk pengukuran sudut yang tepat. Mudah digunakan dan tahan lama, instrumen optik ini memiliki keypad ergonomis, display dan iluminator layar besar untuk akses ke kemampuan pengukuran yang kuat dan kualitas tampilan yang luar biasa meski dalam kondisi kurang cahaya
Features Digital Theodolite Topcon DT-205 (5 Second Accuracy)
- Measure horizontal and vertical angles
- 5-second accuracy
- 2.5-inch telescope resolving power
- Dual axis compensator
- Absolute encoder
- Reticle illumination
- Optical plummet
- Detachable tribrach
- RS232C serial port
- Water resistant and dustproof to IP-66
- Dual backlit LCD display
- Up to 140-hour battery life
- Removable handle
Specifications Digital Theodolite Topcon DT-205 (5 Second Accuracy)
Telescope | |
Image | Erect |
Magnification | 30x |
Diameter of Objective Lens (Aperture) | 1.8 in (45 mm) |
Focus Distance | 3 ft (0.9 m) |
Field of View | 1 degree 30' |
Ratio of Stadia Lines | 100 |
Resolving Power | 2.5-inch |
Length of Tube | 5.9 in (149 mm) |
Reticule Illumination | yes |
| |
Optical Plummet | |
Image | Erect |
Magnification | 3x |
Field of View | 3 degrees |
Focus Range | 1.64 ft (0.5 m) |
| |
Angle Measurement | |
Display | 1"/5" (0.2/1mgon) |
Accuracy | 5-second |
Circle Diameter | 2.8 in (71 mm) |
Measuring Method/Reading System | Absolute |
Detection Method | Horizontal: diametrical; vertical: single |
| |
Level | |
Plate/Tubular Bubble Vial | 40 seconds/2 mm |
Circular Bubble Vial | 10 minutes/2 mm |
| |
General | |
Weight | 9.0 lbs (4.1 kg) |
Warranty | 5-year |
Dimensions | 7.1 x 5.87 x 12.3 in (18.8 x 14.9 x 31.3 cm) |
Protection Class | IP-66 (dustproof and protection against water jets and heavy seas) |
Tribrach | Detachable |
| |
Battery/Power | |
Power Source | 4 x AA batteries |
Battery Life | 140 hours |
Battery Life Alert | yes |
| |
Applications | |
90-Degree Layout | yes |
Checking Angles | yes |
Alignment and Plumb | yes |
Short-Range Leveling | yes |
General Construction | yes |
Anchor Bolt Positioning | yes |
Steel Column Placement | yes |
Setting Elevations | yes |
Setting Lines | yes |
Basic Grade Work | yes |
| |
Display and Keypad | |
Type | LCD, 7 digits x 2 lines |
Sides | Dual |
Backlight | yes |
| |
Temperature | |
Operating | -4°F to +122°F (-20°C to +50°C ) |
| |
Tilt Sensor/Compensator | |
Range | ±3' (±55mgon) |
Type | Automatic vertical compensator |
| |
Interface | |
Pin Port | RS-232C |
Complete with:
- Alumunium tripod
- Levelling staff / Rambu ukur
" Beli Digital Theodolite Topcon DT-205 dengan harga ekonomis dan cari produk lainnya dari kategori Digital Theodolite dari Merk Topcon. Gratis biaya pengiriman untuk wilayah Jakarta, Bogor, Depok, Tanggerang & Bekasi (JABODETABEK). Dan dapat dikirim ke seluruh Indonesia. Dapatkan hanya di indotelecom.net, belanja online mudah dan aman."
